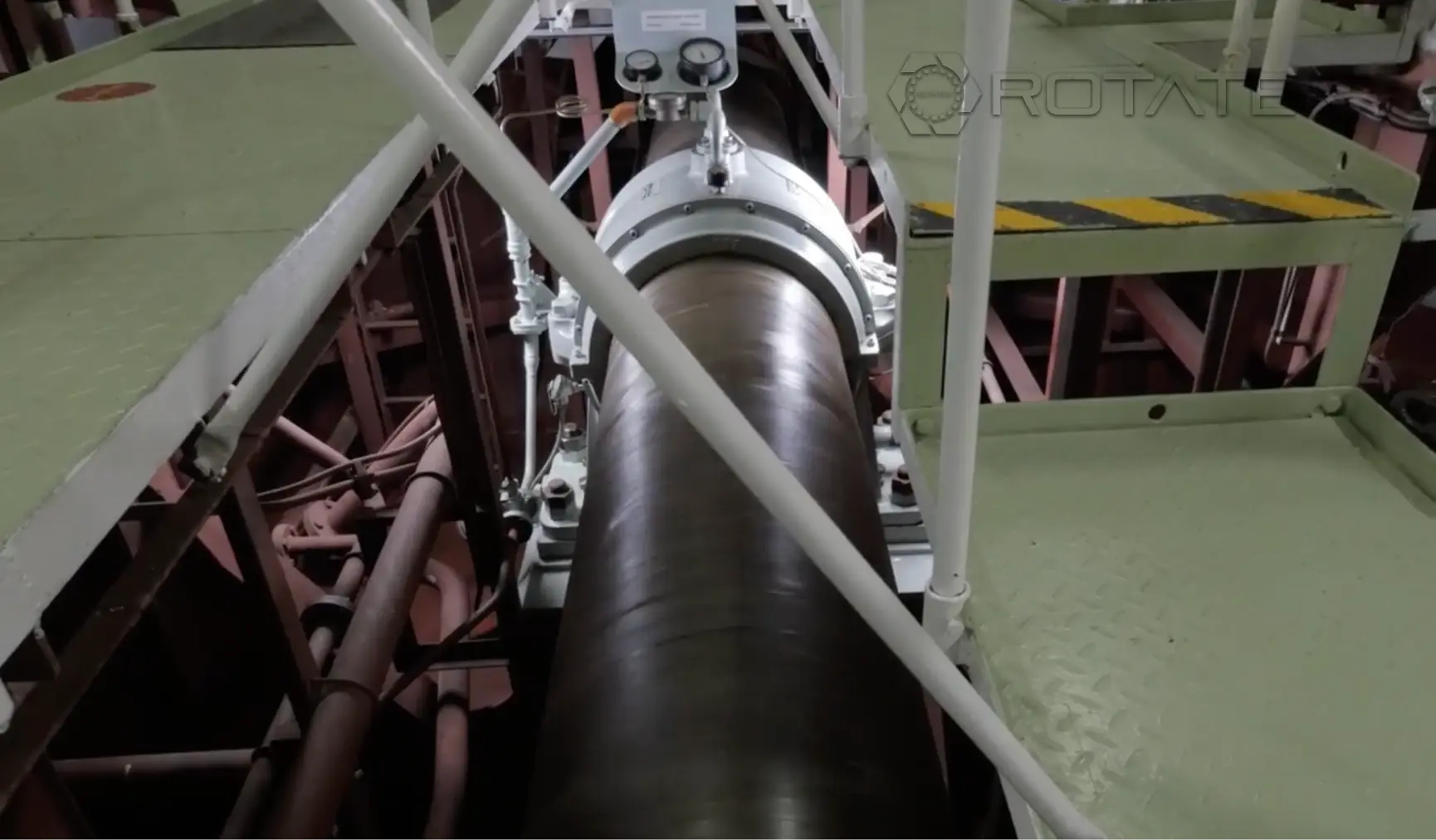

STRAIN GAUGE ALIGNMENT FOR MARINE SHAFTING SYSTEMS
At ROTATEK, we deliver precision strain gauge alignment services for marine propulsion and auxiliary shafting systems. By strategically applying strain gauges during installation, overhaul, or retrofit, we measure shaft stress and deflection under static or simulated loading—capturing horizontal and vertical bearing reactions to verify accurate alignment before the vessel enters operation.
To enhance diagnostic accuracy, our engineers develop a Finite Element Model (FEM) of the shafting system, correlating real-world strain data with predicted stress behavior. Combined with NIST-traceable laser tracker measurements, this method identifies misalignment, uneven bearing loads, and structural deflection with high resolution.
Every project includes detailed reports for commissioning, QA, and long-term assurance—giving you confidence in your alignment from day one.
how Can we Help you?
Our expert team is ready to help you with your next project. Explore the industries we serve or contact us to learn more.
To maximize the accuracy and reliability of every alignment, ROTATEK offers a suite of integrated marine services that enhance and support our strain gauge alignment solutions:
Unlike traditional alignment methods using a straight edges, or dial indictors, Rotatek field engineers utilize state-of-the-art 3D Laser Trackers and Finite Element Models (FEM) for unparalleled accuracy, precision and measurement acquisition time.
WHAT IS STRAIN GAUGE ALIGNMENT?
Strain gauge alignment is an advanced method of verifying shaft alignment by directly measuring the strain—or deformation—experienced by shafting components under load conditions. Unlike visual or geometric alignment alone, this method provides real-world data on how the shaft system behaves when assembled and subjected to weight, misalignment, or flexural stress—including the resulting horizontal and vertical bearing reactions.
HOW IT WORKS:
Strain gauges—small, highly sensitive sensors—are bonded to the shaft or surrounding components at critical locations.
As the shaft experiences mechanical stress, the strain gauges detect even the slightest deformation (measured in microstrain).
These strain readings are correlated with a Finite Element Model (FEM) to understand how alignment affects stress distribution and both horizontal and vertical bearing loads across the shaft line.
When combined with laser tracker measurements, this approach allows for both geometric alignment and structural load verification, ensuring shaft performance under static or simulated conditions.
WHY IT MATTERS:
Detects unseen issues like misalignment and out-of-tolerance horizontal and vertical bearing reactions.
Ensures shaft alignment isn’t just “within spec” but optimized for real-world load behavior.
Prevents costly rework, vibration, and premature bearing or coupling failure.
Strain gauge alignment is especially valuable for marine propulsion systems, long shaft runs, and critical rotating machinery, where precise alignment under load is essential for performance and longevity.
STRAIN‑GAUGE ALIGNMENT FOR MARINE SHAFTING — FEM‑ENHANCED ACCURACY
When precision alignment means performance at sea, ROTATEK delivers. Our strain gauge alignment service for marine propulsion and auxiliary shafting systems combines real-world strain data with Finite Element Modeling (FEM) to validate shaft alignment under true operating conditions—including calculated horizontal and vertical bearing loads—before sea trials even begin.
WHY IT WORKS
Load‑verified insight: Strain gauges reveal hidden stresses and bearing loads during quiescent or simulated conditions, quantifying both axial stress and multi-directional bearing reactions.
FEM correlation: Our engineers build a custom FEM of your shaft line, correlating measured strains to predicted stress fields and bearing load reactions for unmatched accuracy.
Laser‑tracker precision: NIST‑traceable laser trackers capture geometry and positional data to micron‑level resolution.
WHAT YOU GAIN
Early detection of misalignment, horizontal/vertical load imbalance, or support deflection
Reduced vibration, fuel consumption, and wear once underway
Fully documented QA package for class society and shipyard compliance
WHY CHOOSE ROTATEK?
➤ PROVEN EXPERTISE IN MARINE SHAFT ALIGNMENT
With decades of experience in precision alignment for marine propulsion systems, ROTATEK understands the complexities of operating in dynamic marine environments. We’ve supported commercial vessels and naval fleets with unmatched technical accuracy.
➤ STRAIN GAUGE ALIGNMENT BACKED BY FEM
Our methodology integrates real-time strain gauge data with Finite Element Modeling, giving you a predictive, data-driven alignment you can trust—before you leave the dock. This includes analysis of vertical and horizontal bearing reactions to help you make informed, load-based alignment decisions.
➤ GLOBAL, ON-SITE ALIGNMENT SERVICE
Whether in dry dock or afloat, our experienced field teams are ready to deploy worldwide. We deliver fast, dependable service that minimizes downtime and keeps your project on schedule.
➤ FULL-SYSTEM PERSPECTIVE
We go beyond shaft lines. Our approach considers bearing loads in all axes, thermal growth, structural influences, and onboard vibration—all critical to long-term reliability.
➤ TRUSTED BY SHIPYARDS AND OPERATORS ALIKE
From initial sea trials to retrofit alignment, major shipyards and fleet operators rely on ROTATEK to deliver results that meet classification society standards and exceed operational expectations.
READY TO ALIGN WITH CONFIDENCE?
Contact ROTATEK to schedule FEM‑enhanced static strain‑gauge alignment or learn how our complementary marine alignment and shipbuilding services keep your vessel’s shafting system mission‑ready.
